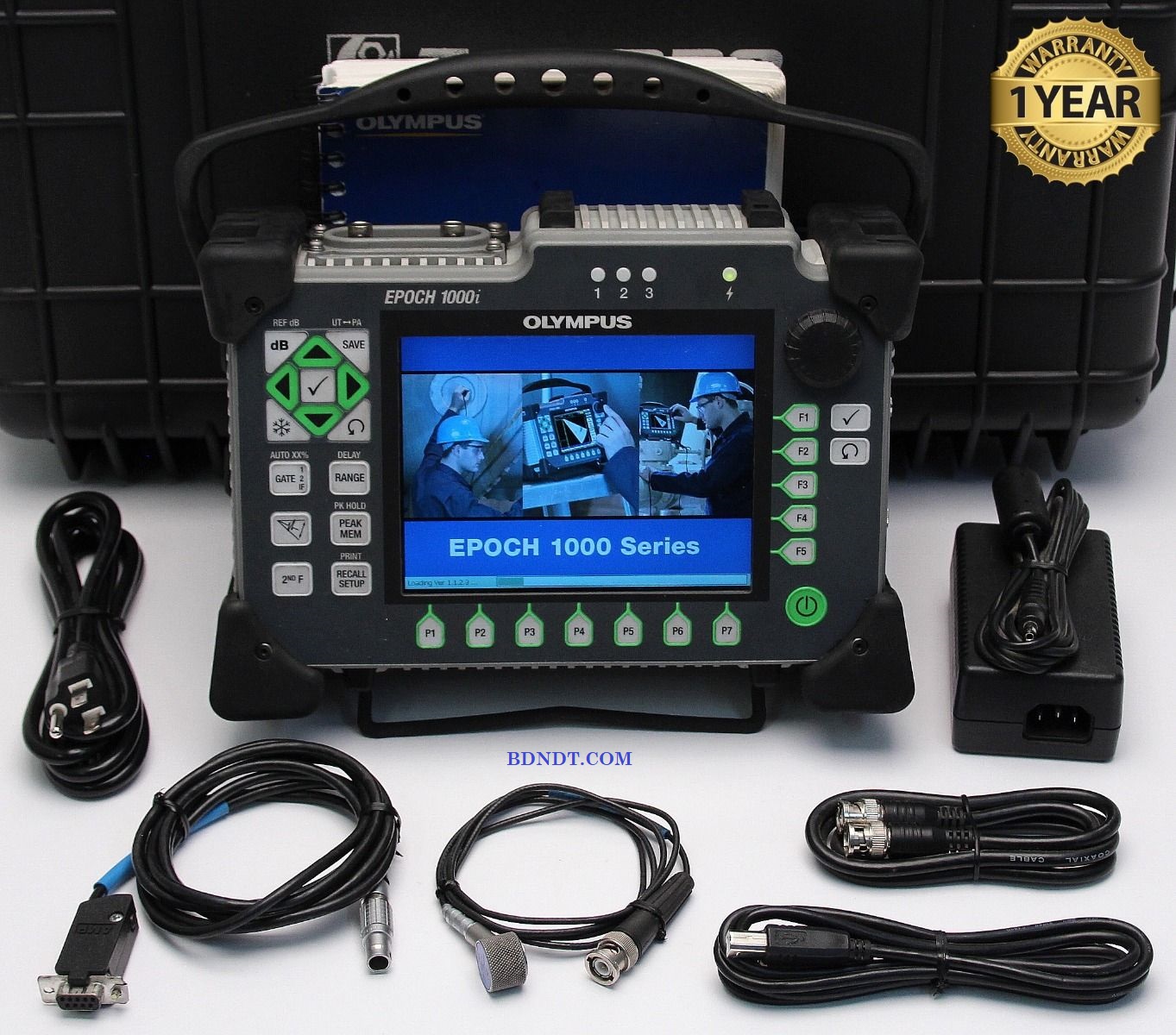

Olympus Epoch 1000i Ultrasonic Flaw Detector Upgradeable to Phased Array The EPOCH® 1000, EPOCH 1000iR, and EPOCH 1000i provide advanced conventional ultrasound capabilities for both basic and advanced level users. These portable instruments can also be integrated into small systems for high-speed scanning and single-channel imaging and come standard with a host of high-performance features, including a 6 kHz maximum Pulse Repetition Frequency (PRF) with single-shot measurements for accurate high-speed scanning applications, tunable square wave pulser with PerfectSquare™ technology, and comprehensive digital filter sets for exceptional signal-to-noise clarity. Features: Adjustable pulse repetition frequency (PRF): 5 Hz to 6 kHz Single-shot measurements in all standard modes Tunable square wave pulser with PerfectSquare™ technology Programmable analog and alarm outputs Over 30 digital filter sets Digital high dynamic range receiver EPOCH 1000 Advanced UT The EPOCH® 1000 is an advanced conventional ultrasonic flaw detector that can be upgraded with phased array imaging at an authorized Olympus service center. EPOCH 1000 iR Advanced UT Phased Array Ready The EPOCH 1000 iR provides the same ultrasonic flaw detection capabilities as the EPOCH 1000 with the benefit of upgrading to phased array with simple field-remote activation. EPOCH 1000 i Advanced UT Phased Array Built-in The EPOCH 1000 i comes standard with the same advanced ultrasonic flaw detection capabilities as the EPOCH 1000, with the addition of a built-in phased array imaging package. Full Specifications: General Specifications Overall dimensions: (W x H x D) 252 mm × 177 mm × 107 mm (9.92 in. × 6.97 in. × 4.2 in.) Keypad: English, International, Japanese, Chinese Languages: English, Spanish, French, German, Japanese, Chinese, Russian, Italian, Polish Transducer connections BNC or Number 1 LEMO Data storage :Onboard up to 10,000 IDs with waveform, standard 4 GB compact flash card (removable) Battery type: Single lithium-ion rechargeable standard Battery life: 8 hours (conventional UT mode); 7 hours (phased array mode) Power requirements :AC Mains: 100 VAC to 120 VAC, 200 VAC to 240 VAC, 50 Hz to 60 Hz Standby mode :Adjustable from 15 minutes to 120 minutes with 50% less battery consumption Display type: Full VGA (640 × 480 pixels) Transflective Color LCD, 60 Hz update rate Display dimensions (W x H, Diag.): 132.5 mm × 99.4 mm, 165.1 mm (5.2 in. × 3.9 in., 6.5 in.) Inputs/Outputs USB ports: 1 USB Client, 3 USB Host ports RS-232: Yes Video output: VGA output standard Analog output: 4 analog outputs, Selectable 1V/10V Full Scale, 4 mA max Alarm output: 6 alarm outputs, 5V TTL, 10 mA Trigger I/O: Trigger input 5V TTL; trigger output, 5 V TTL, 10 mA Encoder inputs 2-axis encoder line (quadrature) Environmental Ratings IP rating: Designed to meet requirements of IP66 Explosive atmosphere: Tested to MIL-STD-810F, Method 511.4, Procedure 1. Atmosphere defined per NFPA 70, Article 500 as Class I, Division 2, Group D. Shock tested: IEC 600689-2-27, 60 g’s, 6 µsec Half-Sine, 18 Axes total Vibration tested: Sine vibration, IEC 60068-2-6, 5 Hz to 150 Hz @ 0.03 in. or 2 g’s Displacement Amplitude, 20 sweep cycles Operating temperature: –10 °C to 50 °C (14 °F to 122 °F) Battery Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Battery Recharge temperature: 0 °C to 40 °C (32 °F to 104 °F) Pulser Pulser type: Tunable Square Wave PRF: 5 Hz to 6,000 Hz in 5 Hz increments Energy settings 50 V to 475 V in 25 V increments Pulse width: Adjustable from 45 ns to 5,000 ns (0.1 MHz) with PerfectSquare Technology Damping 50 Ω, 100 Ω, 200 Ω, 400 Ω Pulser delay: Not applicable Receiver Gain: 0 to 110 dB Maximum input signal: 20 Vp-p Receiver input impedance: 400 Ω ± 5% Receiver bandwidth: 0.2 MHz to 26.5 MHz @ –3 dB Receiver delay NA Digital filter settings Standard filter set (EN12668-1 Test & Compliant): 7 filters Advanced filter set (not tested to EN12668-1): 30 filters Rectification: Full wave, positive half wave, negative half wave, RF Reject: 0 to 80% FSH with visual warning Amplitude measurement: 0% to 110% full-screen height with 0.25% resolution Measurement rate: Equivalent to PRF in all modes Calibration Automated calibration • Velocity, Zero Offset • Straight Beam (first back wall or echo-to-echo) • Angle Beam (Soundpath or Depth) Test modes: Pulse Echo, Dual, or Through Transmission Units: Millimeters, inches, or microseconds Range: 3.33 mm to 26,808 mm (0.131 in. to 1054.1 in.) at 5900 m/s (0.2320 in./µs) Velocity: 635 to 15, 240 m/s (0.0250 to 0.6000 in./µs) Zero offset: 0 µs to 750 µs Display delay: –59 mm to 25,400 mm (–2.323 in. to 1000 in.) Refracted angle 0° to 85° in 0.1° increments Gates Measurement gates: Two fully independent gates for amplitude and time-of-flight measurements Measurement mode: Soundpath Interface gate: Optional, with Gate 1 and Gate 2 tracking Gate start: Variable over entire displayed range Gate width: Variable from gate start to end of displayed range Gate height: Variable from 2% to 95% full-screen height Alarms • Positive and negative threshold • Minimum depth Reference cursors: Two reference cursors for A-scans Measurements Displayed measurement: Six locations available (manual or auto selection) Gate 1: Thickness, soundpath, projection, depth, amplitude, time-of-flight, min./max. depth, min./max. amplitude Gate 2: Same as Gate 1 IF gate (Optional): Thickness Echo-to-Echo: Standard. Choose between Gate2-1, Gate2-IF, and Gate1-IF Other measurements: Overshoot (dB) value for DGS/AVG, ERS (equivalent reflector size) for DGS/AVG, AWS D1.1/D1.5 rating (D), reject value DAC/TVG: Standard DAC points: Up to 50 points, 110 dB dynamic range Special DAC modes: 20% to 80% DAC, Custom DAC (up to 6 curves) TVG table: Up to 50 points, 110 dB dynamic range, compatible with IF Gate at all PRF settings Curved surface correction: Standard. Tube or bar OD correction for angle beam measurements Weight: 3.67 kg (8.1 lb), including lithium-ion battery Download Product Datasheet Olympus Epoch 1000i
Phased Array
