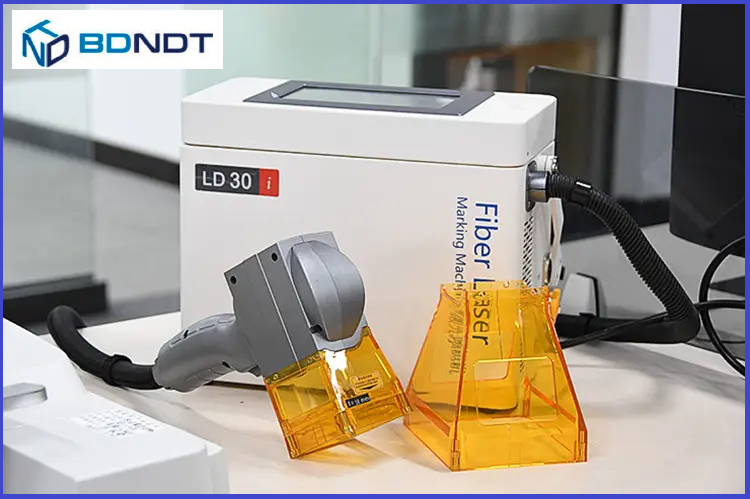

BD NDT Provide all type of Laser Marking Machine & Laser marking machine accessories in Bangladesh. SPECIFICATIONS OF LD20i LD30i PROTABLE FIBER LASER MARKING MACHINE Model LD20i LD30i Output power ≥20-watt ≥30-watt Material Anodized aluminum Laser type Fiber laser source Laser wavelength 1064nm Marking method High-precision 2D scanning Marking speed ≤7000mm/s Control system Highly- integrated motherboard, a 7-inch touch display built-in. Can be connected to extra 10-inch touch screen. Operating system WIN CE Cooling system Air cooling Type of marking line Dot matrix / vector (both are available) Reflector size Standard size:8.5mm Marking range Standard:50mm×50mm/100mmx100mm Positioning method Red light positioning Lines of marking Any number of lines within the marking field Marking speed 650 characters/sec (the specific speed is related to product material and printing content) Font Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard font libraries File format BMP/DXF/HPGL/JPEG/PLT Bar code / QR code CODE39,CODE128,CODE126,QR,Z-code,DM, visual code, etc. Power 220V Max. power ≤300W N.W. 12kg Handle dimension 241.5mmx79mmx151mm Control box dimension 320mmX170mmX270mm Pollution level 2 Overvoltage category Ⅱ Working temperature 0-40℃ Working humidity 30%-85 % RH (non-condensing)
